Slider (Interface)

Use a slider to adjust the input values in your model by dragging it from side to side.

You can control the size and color as well as the range over which a slider operates. Sliders can be used with any model variables, but will require activation via the override button () for variables that aren't constants.

To place a slider on the diagram

From the Interface Build toolbar, click on the slider tool ().
Click the diagram to add the slider.
Position the slider and size it as desired.
In the properties panel, select the variable you want the slider to control.
Set any styles you like on the slider, including whether or not it displays the variable name.
Go to presentation mode to use the slider to change the variable it's applied to.

For more information about placing and editing sliders, see Working with Objects.

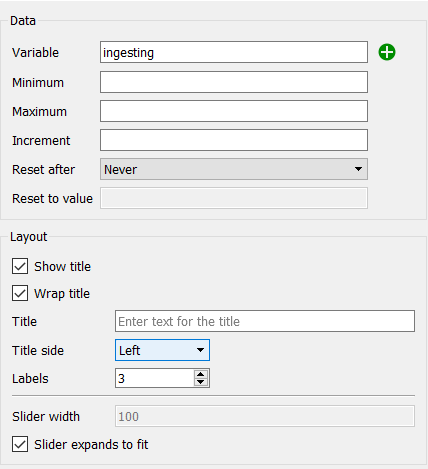

Slider Properties

Data

Variable specifies the variable the slider will control. Begin typing and autocomplete suggestions will appear, or click on the , then select the variable you want from the find dialog that appears.

Minimum specifies the minimum value the slider will take on.

Maximum specifies the maximum value the slider will take on.

Increment specifies the amount the slider will change as it's dragged.

Reset After specifies the time after which the user set value will revert to the "Reset to value" specified below. If this is Never (the default), the value won't reset.

Reset to value specifies the value the variable controlled by the slider will take on after the "Reset after" interval specified above (since the slider was set) is passed.

Layout

Show title, if checked, specifies that text should be displayed with the slider.

Wrap title, if checked, will wrap the title in order to allow more room for the slider proper.

Title specifies what text will be displayed if the "Show title" checkbox is checked. If blank, the variable name will be used.

Title side specifies which side of the slider the text should be displayed on. This only matters if the check box for "Show title" is checked.

Labels indicates the number of labels the slider should display.

Slider Width

Specifies the width of the slider, with the label text taking up the remainder of the overall object. This is useful when placing labels on the left to make a sequence of sliders placed vertically line up. Available only when Slider expands to fit is not checked.

Slider expands to fit, if checked, will automatically fit both the text and the slider into the overall object. If it is not checked, the value in Slider Width will be used and the text aligned to the left of the overall object container (so there may be a space between the text and slider). If you specify a width that is too large to fit both the text and slider the value will be ignored.
