Loop Labels

Use loop labels to highlight feedback loops (or parts of feedback loops) in your model. You can place the label inside the loop or set them up in a legend with the loops highlighting as the mouse passes over the labels.

You can create Loop Labels only on the model. However, the label will display and any highlighting will be active when model structure is presented on the interface in a story or using the Model View tool.

To place a loop label on the diagram

Click on the loop label in the build toolbar of the model window.
Click the diagram to place the label.
To specify the label text and rotation direction as well as to set up the list of variables to be highlighted when the user passes the mouse over the label click on the label to open the Loop Label Properties (double-click in explore mode or if the panel is closed).

You can move a loop label by dragging it and resize it by clicking on it and dragging its resize handles. Loop labels always have the same width and height.

If you do select variables and connectors for the loop tool, they will be highlighted whenever the user move the mouse over the object.

Note Selecting the variables to highlight is optional. It can be very valuable when working with the model to distinguish the different loops, but the same effect can be achieved by highlighting structure in a model view object on the interface.

Highlighting Loops

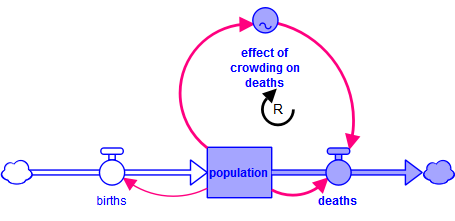

If you assign variables and connectors to the loop label, they will highlight whenever you move the mouse over them. This highlighting is helpful directly, and can also be copied and pasted as a picture into other documents.

Select everything in the diagram that you would like to be pasted. This can be the entire model.
Position the cursor over the loop tool. The variables associated with the loop tool will highlight.
With the cursor still positioned over the loop label, use Ctrl+C (⌘+C on Mac) to copy the structure. Right clicking to copy or using the Edit menu will not work as these will change the selection or the highlighting.
